Product Overview.

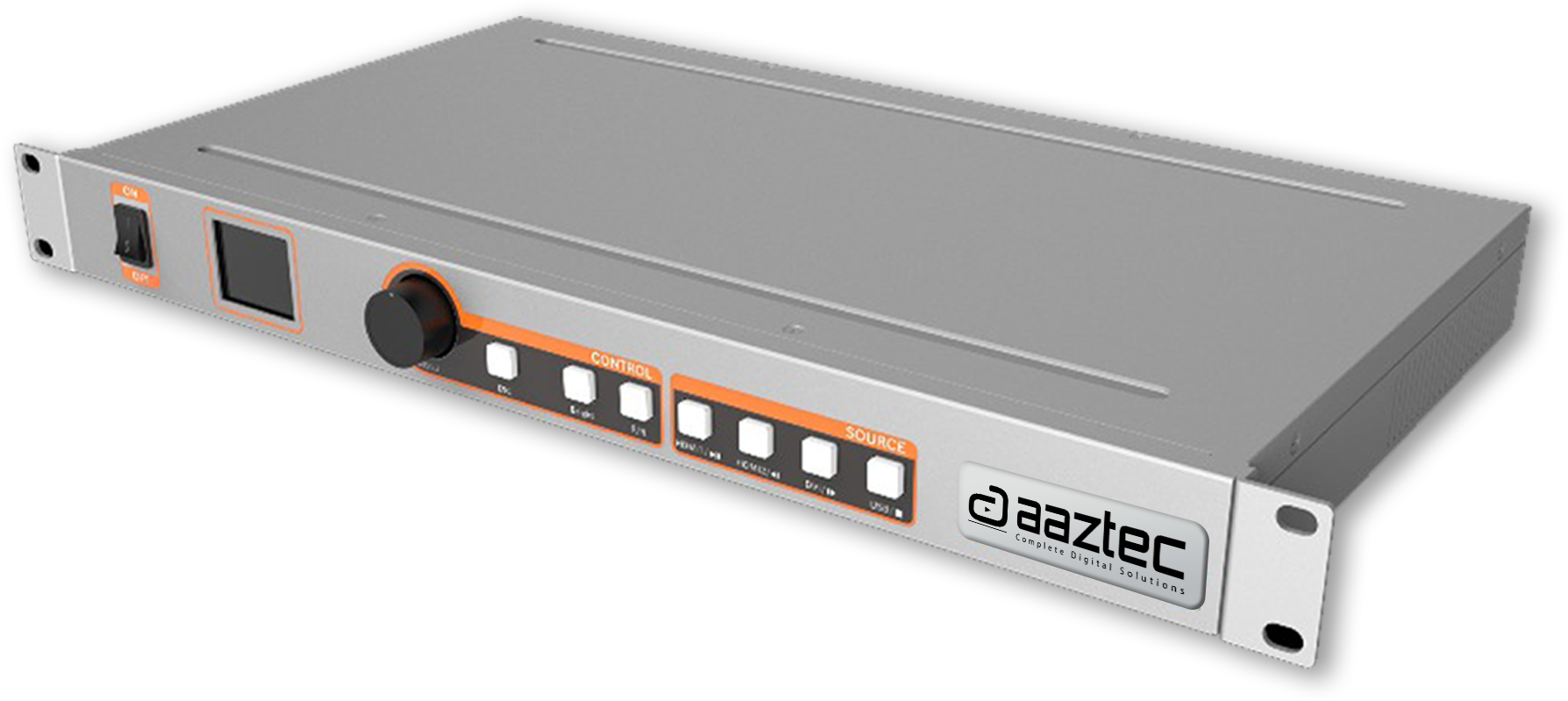

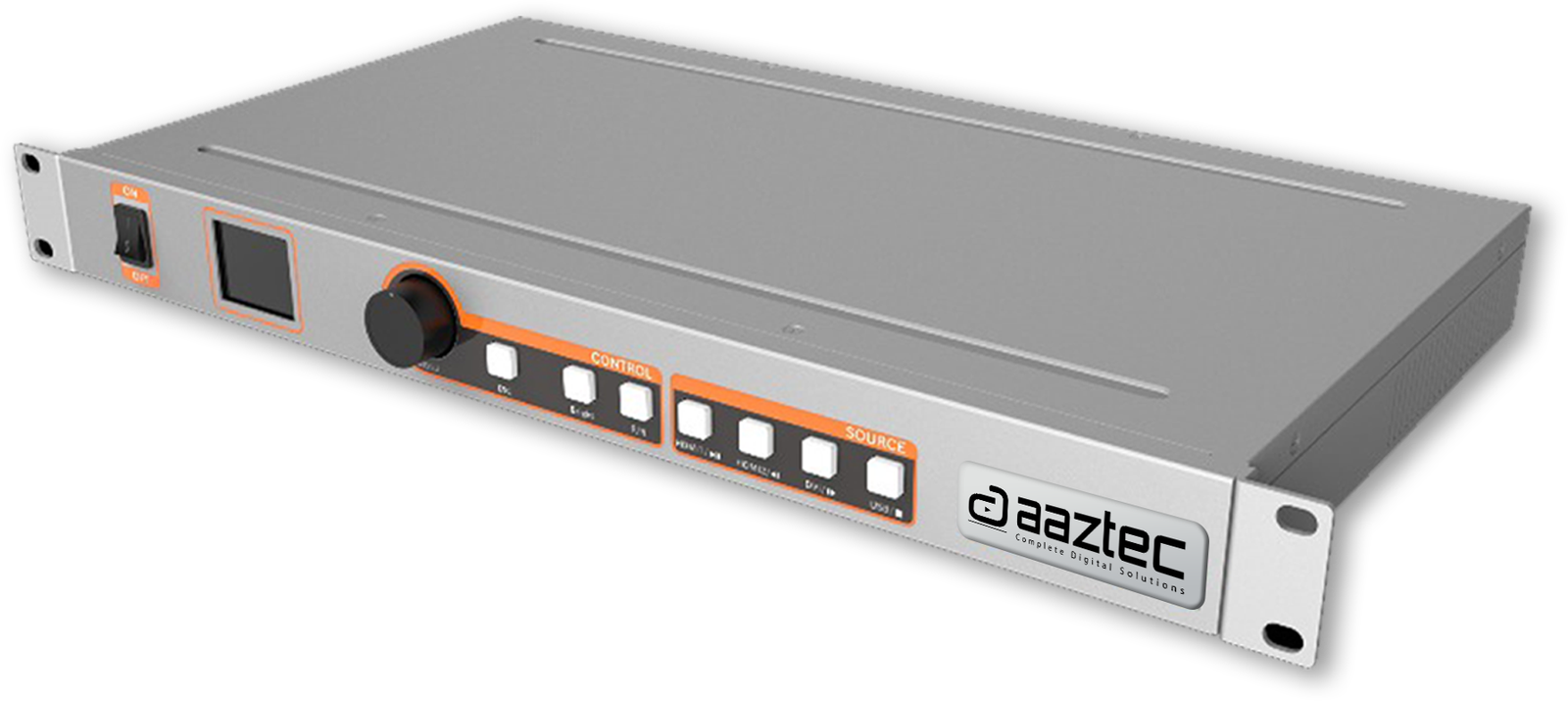

Aaztec AX-S02 is an 3 in 1 controller integrating a professional video processor, LED sending card, and offline player into one unit with two network ports - simplifying LED display configuration and on-site debugging.
Key Features:
- 2 network ports max load of 1.3 million pixels, up to 4096 (W) x 2048 (H).
- Arbitrary wiring: port load is unrestricted by rectangular layout.
- USB playback supports multiple video and image formats.
- Supports multiple digital inputs: 2x HDMI 1.3, 1x DVI-D, 1x USB.
- 3.5mm audio output with synchronized audio and video output
- EDID Management: read/- modify/customize EDID.
- Built-in test patterns : solid color, gradient, scan line, etc.
- Freeze-frame with one key.
- Black border removal/cropping: crop any signal to fill screen.
- Real-time adjustment of brightness and contrast.
Technical Specifications
| Component | Description |
|---|---|
| HDMI 1.3 |
Max resolution: 2048×1152@60Hz Custom max: 2048×1200 8-bit input, HDCP 1.4, RGB/YCbCr 4:4:4 & 4:2:2 Audio supported No interlaced signal |
| HDMI 1.3/VGA |
Max resolution: 2048×1152@60Hz Custom max: 2048× 8-bit input, HDCP 1.4, RGB/YCbCr 4:4:4 & 4:2:2 Audio supported |
| DVI | Same as HDMI, but no audio support |
| USB |
USB drive input for media playback Max resolution: 1920×1080@60Hz Format: NTFS (max 2TB), FAT32 (max 192GB) Audio supported |
| Network Ports |
2x Gigabit output, max 1.3 million pixels Maximum width: 4096, maximum height: 2048 8-bit depth: max 650K pixels per port LED Indicators: Blinking: Normal Solid: Error Off: Cable not connected |
