All In One Controllers

Product Overview.

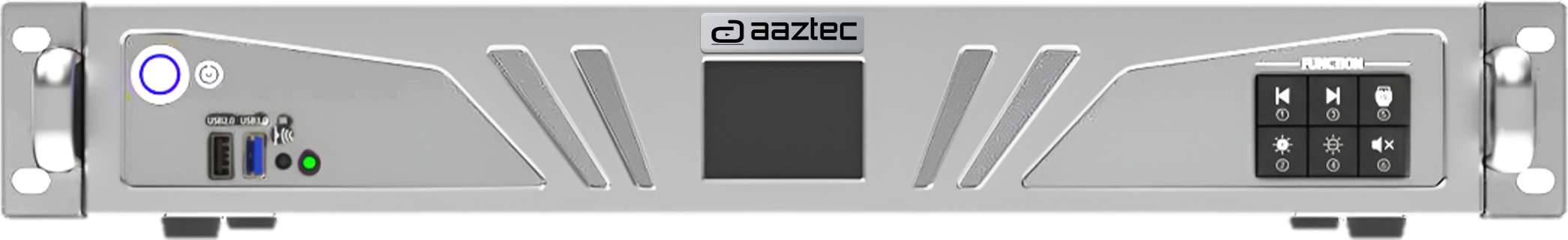

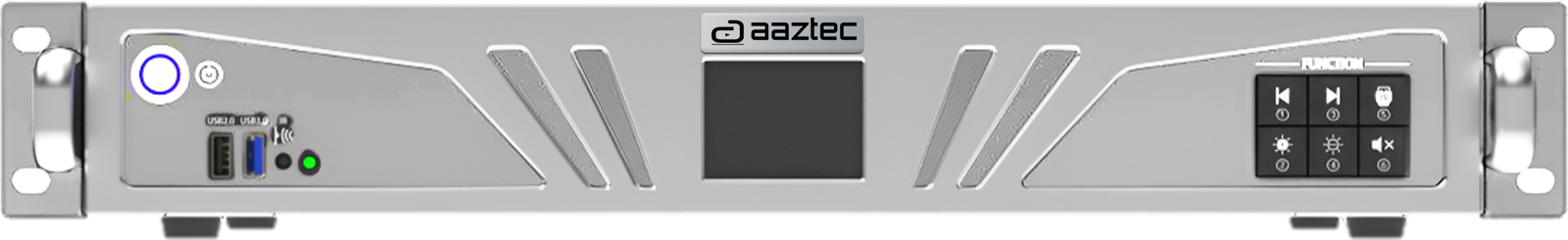

AX-V08 is a multimedia broadcast control terminal device (including software) launched by Aaztec brand, which integrates multimedia playback, Remote control, central control linkage, flat panel visualization and cluster management are integraed, equipped with 12 Gigabit Ethernet output ports, HDMI Output, HDMI input, serial port central control and multi-link broadcast control, replacing the computer and server in the display scene, allowing LED.
The screen becomes a big smart TV!
It is widely used in conference rooms, government and enterprise halls, exhibition halls, indoor commercial displays and other scenarios.

Key Features:

• The device integrates 12 Gigabit Ethernet output ports, no external sending card is required, and it supports the full range of Aaztec receiving cards;
• Single network port 65W points, the whole machine load 760W points, the widest 3840, the highest 2160;
• WIFI 2.4G+5G dual-band, wired Ethernet port, USB flash drive, 4G (optional) multiple communication methods;
• Built-in 64GB (55G available to users), supports USB flash drive expansion; Supports simultaneous connection to monitor and large screen, and duplicate output, supports keyboard and mouse, USB remote control, and mobile APP control;
• Supports modification of theme background via remote control; 3.5mm audio output, audio and video synchronous output;
• Supports 1 HDMI1.3 capture input, maximum support 1920 x 1080@60Hz point-to-point display,
• Support multiple windows and multiple materials to play on the screen at the same time;
• Supports optional 3-way relay control, which can remotely control the external power switch;
• Onboard brightness sensor interface, automatically adjusts screen brightness according to ambient brightness;
• Supports Aaztec CMS cloud platform, cluster hierarchical management and multi-role program publishing;
• The simple APP allows you to fully control program editing and management, allowing you to enjoy the big screen at your fingertips;
