Product Overview.
Information release box launched by Aaztec, which supports 4K high definition output.
Based on the powerful Aaztec CMS cloud service platform, it provides equipment
monitoring, program production, Functions such as orchestration and cluster release,
multi-level permission management, etc.
Supports multiple networking methods such as 4G/5G, WiFi, and wired networks, and
quickly deploys intelligent cloud management functions. Multi-screen, multi-business,
cross-regional unified management. Support the use of Smart play It can edit programs
and publish information, support arbitrary arrangement of programs in multiple windows,
and support the playback of various program materials such as videos, pictures, texts,
tables, weather, clocks, etc.
Widely used in LCD Commercial display field, such as chain store screen, advertising
machine, retail store screen, PC screen wait.
Key Features:
- 4K HD output, maximum 3840x2160 @60Hz, backward compatible.
- Support horizontal and vertical screen switching
- Decoding capability, supports 4K Hard decoding, H264/265 and other commonen coding videos
- WiFi, wired Ethernet port, U disk, 4G (optional) multiple communication methods
- Built-in 32GB(25G available to users), support U Disk expansion
- 3.5mm audio output, audio and video synchronous output
- Window and material playback - Multiple windows and multiple materials to play on the screen at the same time , Rich media materials, such as pictures, videos, texts, clocks, etc.

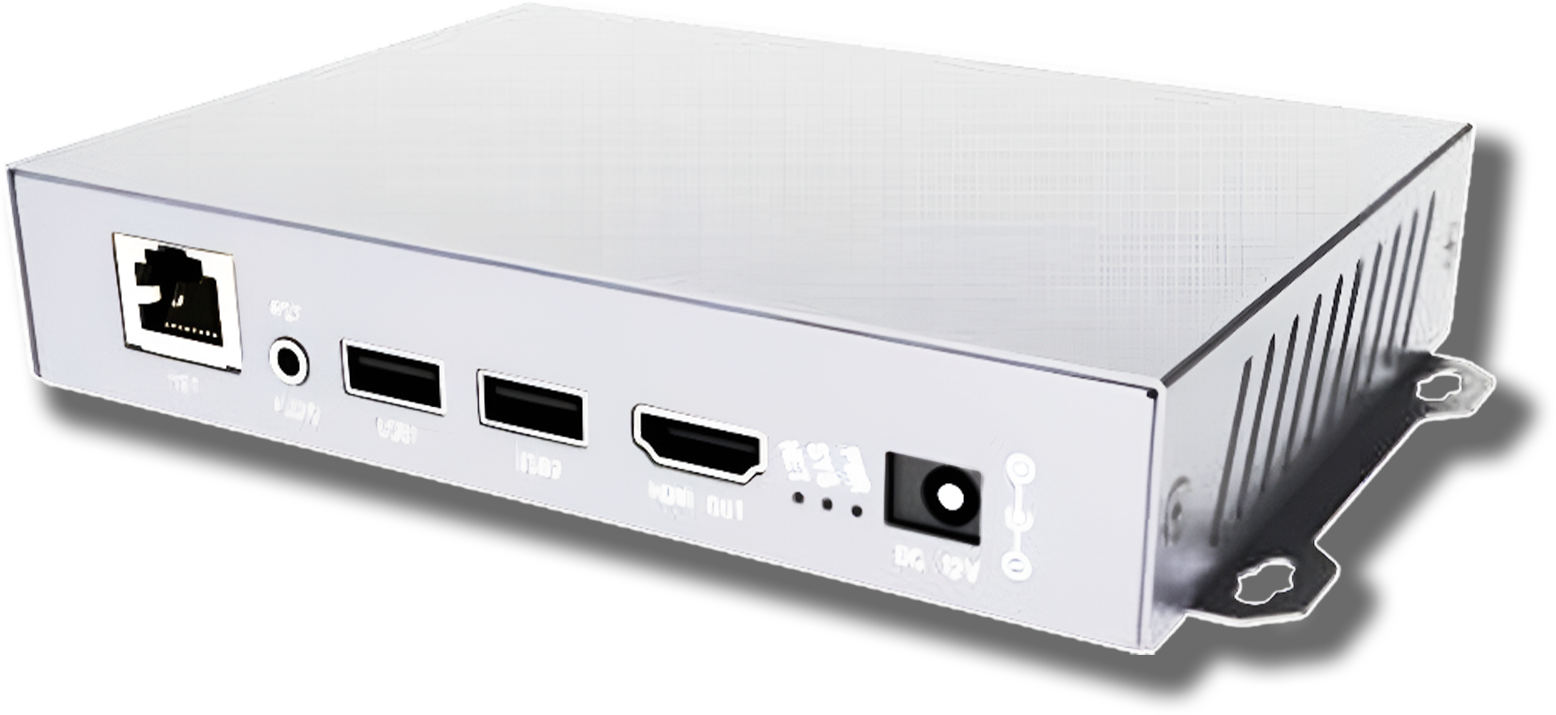

Technical Specifications
| Interface | Description |
|---|---|
| NET | 100M input network port, access to LAN, can be directly connected to PC end |
| AUDIO | Three-stage 3.5mm audio output port |
| RST | Restore factory settings, runtime 30 Within 5-10minutes, press and hold Release within seconds to take effect |
| USB | USB 2.0*1 USB 2.0*1 Update programs via USB flash drive |
| HDMI OUT | HDM IOutput interface, maximum support 4K Resolution output |
| Indicator light |
SYS operating status indicator The system and app start normally, and the sys light is always on. Player app When abnormal, sys flashes, 1 per second Second- rate During the system upgrade process, sys flashes quickly, 4 seconds SecondNET Connection status indicator The NET light is on when the client is connected, otherwise it is off; When connected to the cloud platform, NET flashes once per second; Upload program, NET flashes quickly, 4 per second Second-rate PWR power indicator, long light indicates normal power supply |
