Product Overview.

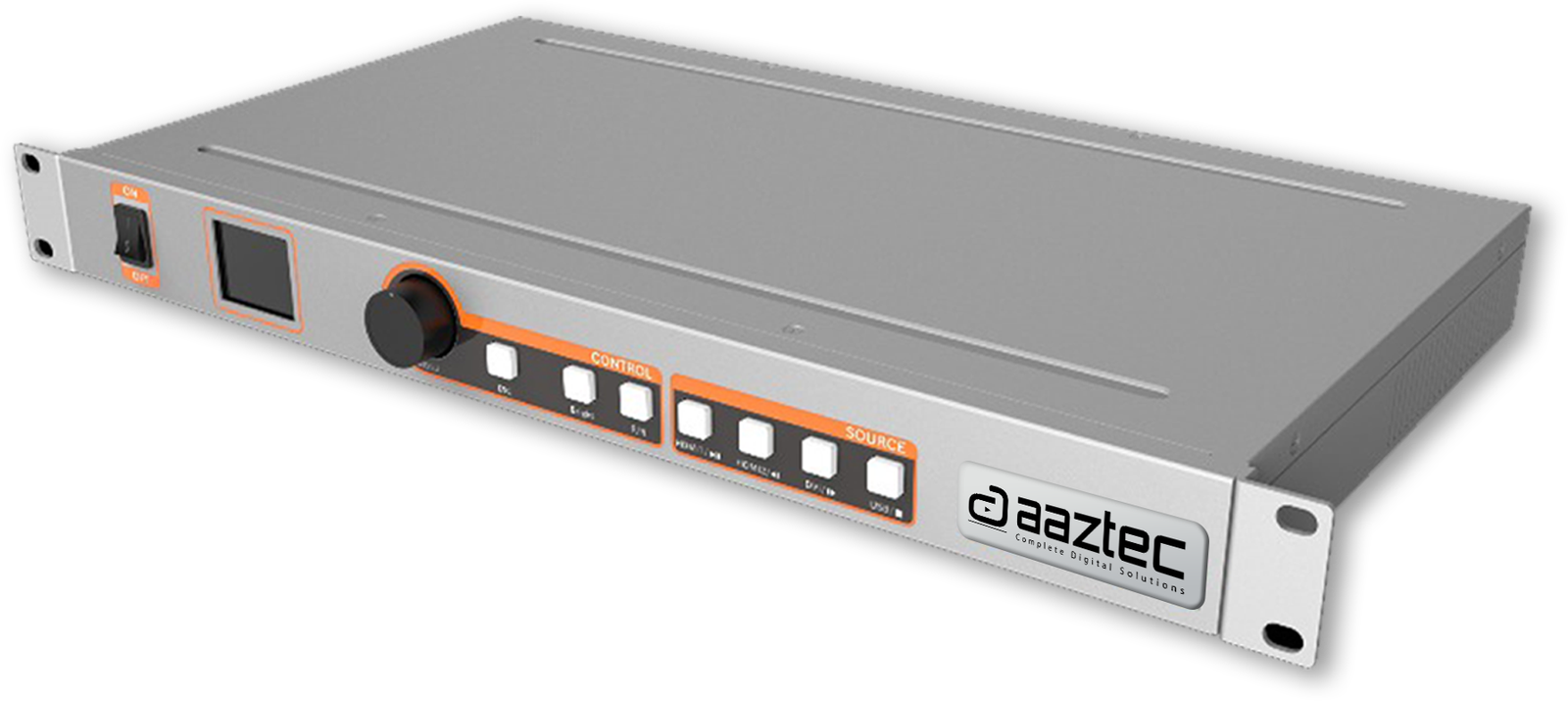

Aaztec AX-S06 2-in1 controller supports 3 digital inputs and 6 network outputs, with a maximum load of 3.9 million pixels. Built on a pure hardware FPGA architecture, it ensures 24/7 continuous operation, meeting the configuration requirements of fine-pitch LED display control systems.
Key Features:
- 6 network ports, single network port load capacity: 650k pixels, max load of 3.9 million pixels, up to 8180 (W) × 4090 (н).
- Arbitrary wiring: port load is unrestricted by rectangular layout.
- Supports output of solid color, gradient, scan line, and other test images for convenient on-site debugging and testing.
- Supports multiple digital inputs: 2x HDMI 1.3, 1x DVI-D, 1x USB.
- 3.5mm audio output with synchronized audio and video output
- EDID Management: read/- modify/customize EDID.
- Supports 3-window display with freely adjustable window positions.
- Freeze-frame with one key.
- Black border removal/cropping: crop any signal to fill screen.
- Real-time adjustment of brightness and contrast.
Technical Specifications
| Interface | Qty | Description |
|---|---|---|
| HDMI 1.4 | 1 |
Supports maximum input resolution: 3840x1080@60Hz or 3840x2160@30Hz Supports Custom max: width - 4096 (4096x2160@30Hz) & Height - 4000 (2200x4000@30Hz) Supports 8-bit, 10-bit, and 12-bit video input Supported color spaces/sampling rates: RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 Supports embedded audio input Supports HDCP 1.4 Does not support interlaced signal input |
| HDMI 1.3/VGA | 1 |
Supports maximum input resolution: 2048x1152@60Hz Supports custom resolutions: width: 2048 (2048x1152@60Hz) & Height: 4000 (500×4000@60Hz) 8-bit video input, HDCP 1.4 Supported color spaces/sampling rates: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 Supports embedded audio input Does not support interlaced signal input |
| DVI | 1 |
Supports maximum input resolution: 2048×1l52@60HZ Supports custom resolutions: width: 2048 & Height: 1200 8-bit video input, HDCP 1.4 Supported color spaces/sampling rates: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 Supports embedded audio input Does not support interlaced signal input |
