Key Features:
Designed for commercial advertising displays, mirror screens, pole displays, and retail signage, the AX-C01 provides flexible content delivery with comprehensive network management:
Dual-Mode Operation: Easily switch between synchronous HDMI input for live video feeds and asynchronous onboard playback for scheduled media campaigns.
High-Capacity Processing: Supports resolutions up to 650K pixels per port, with maximum dimensions up to 3840 pixels wide and 2000 pixels high.
Wireless Configuration: Configure displays directly via mobile devices or laptops over integrated Wi-Fi without needing direct USB cabling.
Onboard Media Storage: Equipped with 8 GB built-in memory (4 GB available for media files) alongside expandable USB storage for large video loops.
Audio-Visual Sync: Integrated 3.5mm stereo output guarantees accurate synchronization between high-definition visuals and localized audio playback.
Advanced AX-C01: Delivering High-Definition Clarity and 24/7 Reliability for Professional Applications
Let’s discuss how the AX-C01 can elevate your environment. Our display experts are ready to provide a customized consultation, technical assessment, and a comprehensive quote tailored to your specific project requirements.

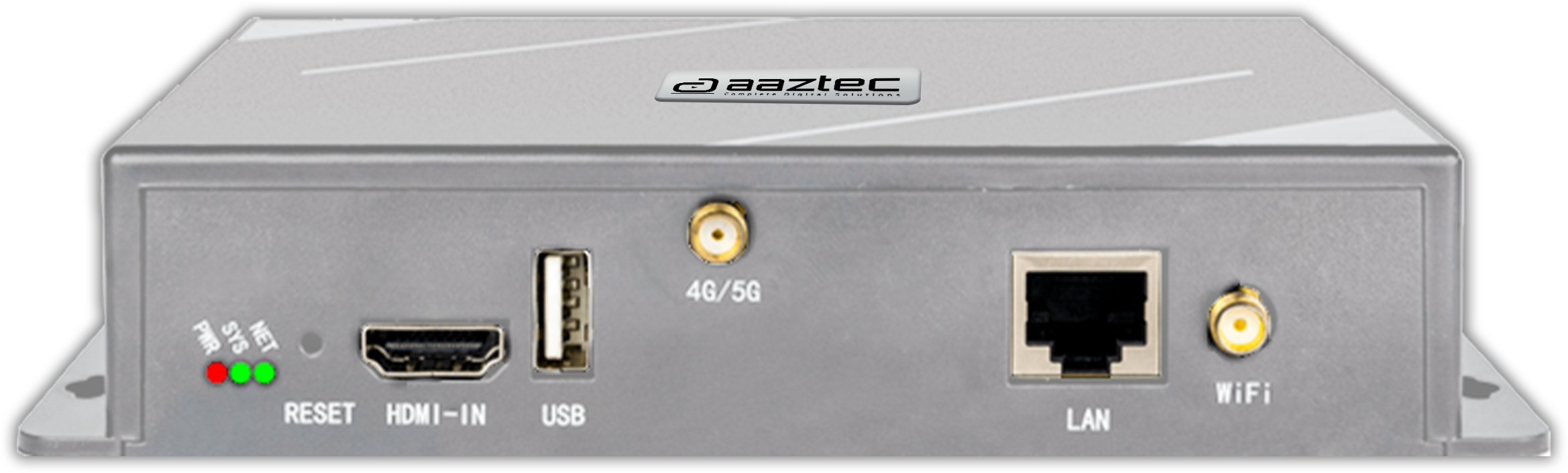

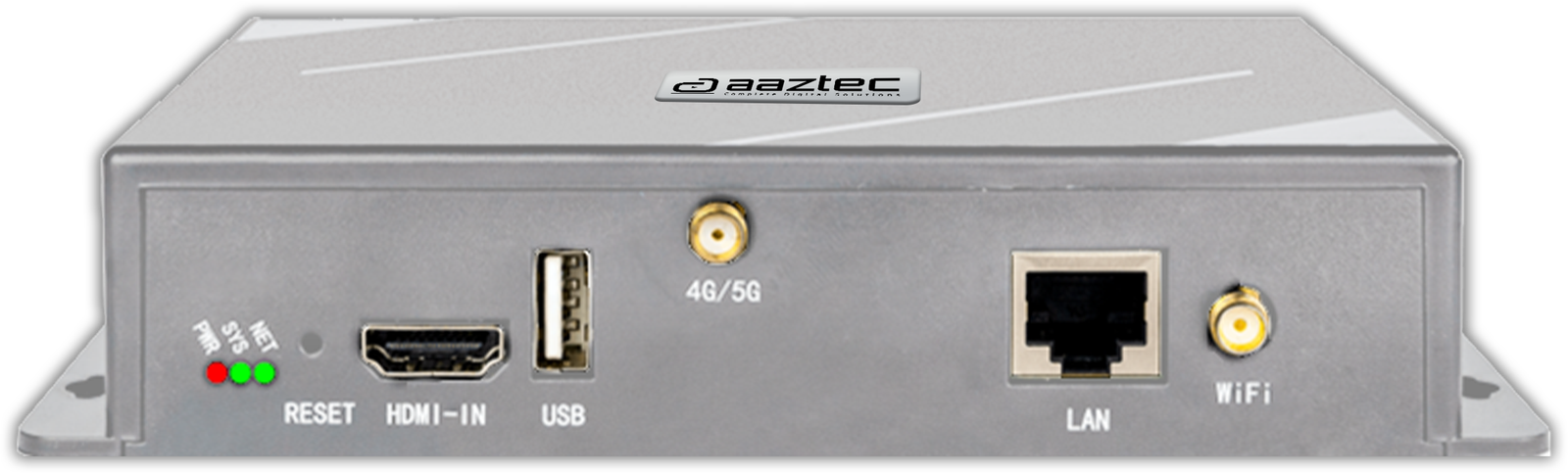

AX-C01 Details
| Item | Function |
|---|---|
| SYS | System Status Indicator On – System and app running normally Blinking (1 Hz) – App error Blinking (4 Hz) – System upgrading |
| NET | Network Status Indicator On – Connected to client; Off – No client connection Blinking (1 Hz) – Connected to cloud platform; Blinking (4 Hz) – Uploading content |
| PWR | Power Indicator On – Power is connected Off – No power supply |
| RESET | Hold for 5-–10s within 30 mins of boot to reset to factory settings |
| HDMI-IN (Optional) | >HDMI 1.3 input port for external signal source |
| USB | USB2.0 USB Used for program updates via USB flash drive |
| 4G/5G (Optional) | Antenna Interface Supports 4G/5G SIM cards from major carriers |
| LAN | 100 Mbps input Ethernet port for LAN access, supports direct connection to a PC |
| WIFI | Wi-Fi antenna interface |
