[ Controllers & Softwares ]

AX-C04

Gigabit Ethernet port ×4

Wi-Fi

60Hz

3.5mm Audio Output

4K HD Output

AX - C04 launched by Aaztec, which supports 4K high definition output. Based on the powerful Aaztec CMS cloud service platform, it provides equipment monitoring, program production, Functions such as orchestration and cluster release, multi-level permission management, etc. Supports multiple networking methods such as 4G/5G, WiFi, and wired networks, and quickly deploys intelligent cloud management functions. Multi-screen, multi-business, cross-regional unified management. Support the use of Smart play It can edit programs and publish information, support arbitrary arrangement of programs in multiple windows, and support the playback of various program materials such as videos, pictures, texts, tables, weather, clocks, etc.

0 GB

Built-in Storage

0 M

Supports pixel upto

0 K

Resolution

[ AX-C04 ]

High Impact. Stunning Clarity.

Key Features:

4K HD output, maximum 3840×2160 @60Hz, backward compatible.
Support horizontal and vertical screen switching .
Decoding capability, supports 4K Hard decoding, H264/265 and other commonen coding videos.
WiFi, wired Ethernet port, U disk, 4G (optional) multiple communication methods Built-in 32GB(25G available to users), support U Disk expansion.
3.5mm audio output, audio and video synchronous output.
Window and material playback
Multiple windows and multiple materials to play on the screen at the same time.
Rich media materials, such as pictures, videos, texts, clocks, etc. .
To 1 4K or 3 1080P video playback.
Aaztec CMS cloud platform, hierarchical management and multi-role program release.

Advanced AX-C04: Delivering High-Definition Clarity and 24/7 Reliability for Professional Applications

[ AX-C04 ]

Ready to Transform Your Space?

Let’s discuss how the AX-C04 can elevate your environment. Our display experts are ready to provide a customized consultation, technical assessment, and a comprehensive quote tailored to your specific project requirements.

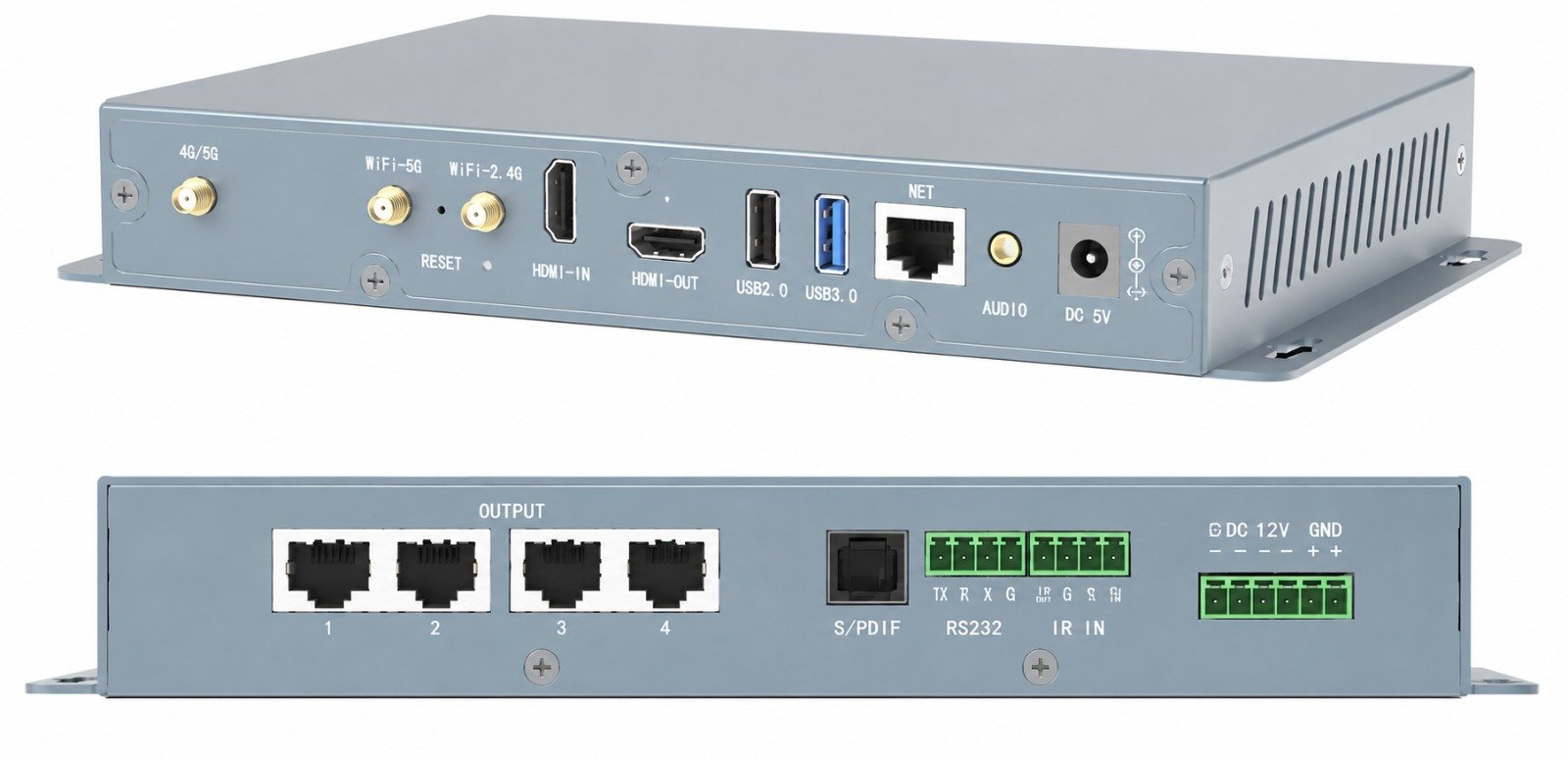

Technical Specifications

AX-C04 Details

Item	Functional Description
NET	100M input network port, access to LAN, can be directly connected to PC end
AUDIO	Three-stage 3.5mm audio output port
RST	Restore factory settings, runtime 30 Within 5-10minutes, press and hold Release within seconds to take effect
USB	USB 2.01 USB 2.01 Update programs via USB flash drive
HDMI_OUT	HDMI lOutput interface, maximum support 4K Resolution output
USB	USB 2.01 USB 3.01 Update programs via USB flash drive
Indicator light	SYS operating status indicator The system and app start normally, and the sys light is always on. Player app When abnormal, sys flashes, 1 per second Second- rate During the system upgrade process, sys flashes quickly, 4 seconds Second- rate NET Connection status indicator The NET light is on when the client is connected, otherwise it is off; When connected to the cloud platform, NET flashes once per second. Upload program, NET flashes quickly, 4 per second Second-rate PWR power indicator , long light indicates normal power supply
DC 12V	12V/1A power supply DC5.5×2.5x10mm
