[ Controllers & Softwares ]

AX-C02

Gigabit Ethernet port ×2

Wi-Fi antenna interface

USB2.0

3.5mm Audio Output

Supports Kares cloud

The Aaztec Media Player AX-C02 is an all-in-one multimedia player that integrates a sending card and a playback terminal. Compared to traditional synchronized playback solutions, it reduces the need for computer-based playback terminals, enabling convenient and flexible control at all times. The device is compact, powerful, and offers enhanced load-bearing capacity. It is well suited for advertising display applications such as mirror screens, lamp pole screens, and full-color storefront screens.

0 GB

Built-in Storage

0 M

Supports pixel upto

0 : 1

Contrast Ratio

[ AX-C02 ]

High Impact. Stunning Clarity.

Key Features:

Gigabit Ethernet port ×2 , single port 650K, total system load 1.3M, maximum width 3840, maximum height 2000;
Multiple communication methods: WiFi, Ethernet, USB flash drive.
Built-in 8GB storage (4GB available to users), supports USB storage expansion
Supports multiple windows and multi-material simultaneous playback;
3.5mm audio output with synchronized audio and video output
Wireless configuration via mobile phone or computer without USB cable;
Onboard brightness sensor interface for automatic screen brightness adjustment based on environmental light;
Supports Kares cloud platform, cluster-level management, and multi-role program publishing;
Simple app for program editing and management, full control of large screens

Advanced AX-C02: Delivering High-Definition Clarity and 24/7 Reliability for Professional Applications

[ AX-C02 ]

Ready to Transform Your Space?

Let’s discuss how the AX-C02 can elevate your environment. Our display experts are ready to provide a customized consultation, technical assessment, and a comprehensive quote tailored to your specific project requirements.

Technical Specifications

AX-C02 Details

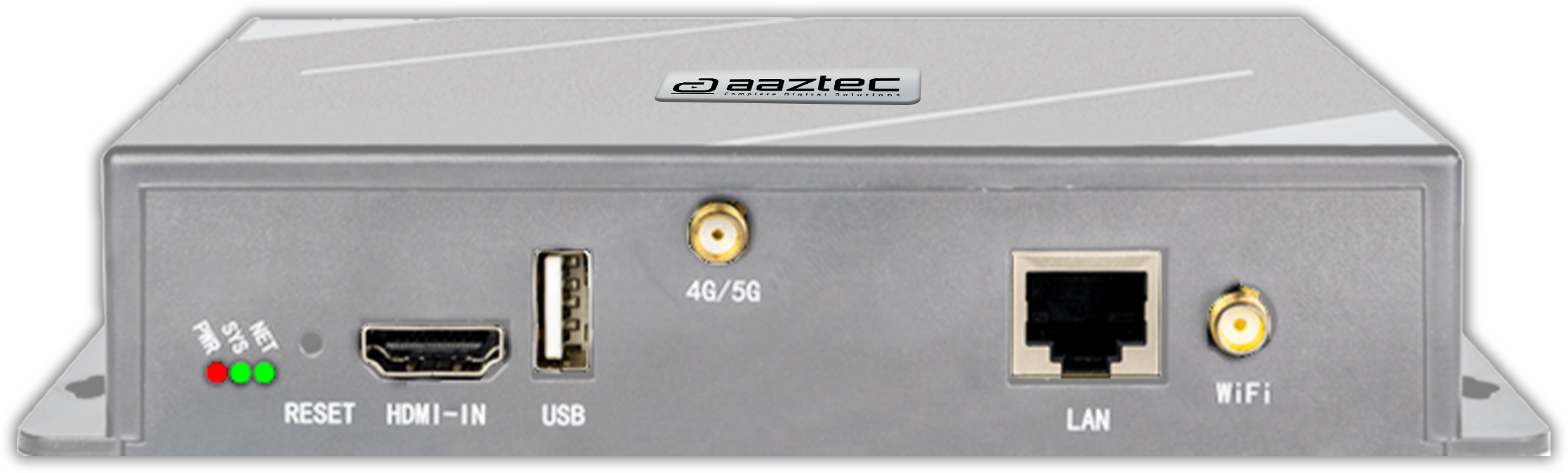

Item	Function
SYS	System Status Indicator On – System and app running normally Blinking (1 Hz) – App error Blinking (4 Hz) – System upgrading
NET	Network Status Indicator On – Connected to client; Off – No client connection Blinking (1 Hz) – Connected to cloud platform; Blinking (4 Hz) – Uploading content
PWR	Power Indicator On – Power is connected Off – No power supply
RESET	Hold for 5-–10s within 30 mins of boot to reset to factory settings
HDMI-IN (Optional)	>HDMI 1.3 input port for external signal source
USB	USB2.0 USB Used for program updates via USB flash drive
4G/5G (Optional)	Antenna Interface Supports 4G/5G SIM cards from major carriers
LAN	100 Mbps input Ethernet port for LAN access, supports direct connection to a PC
WIFI	Wi-Fi antenna interface
