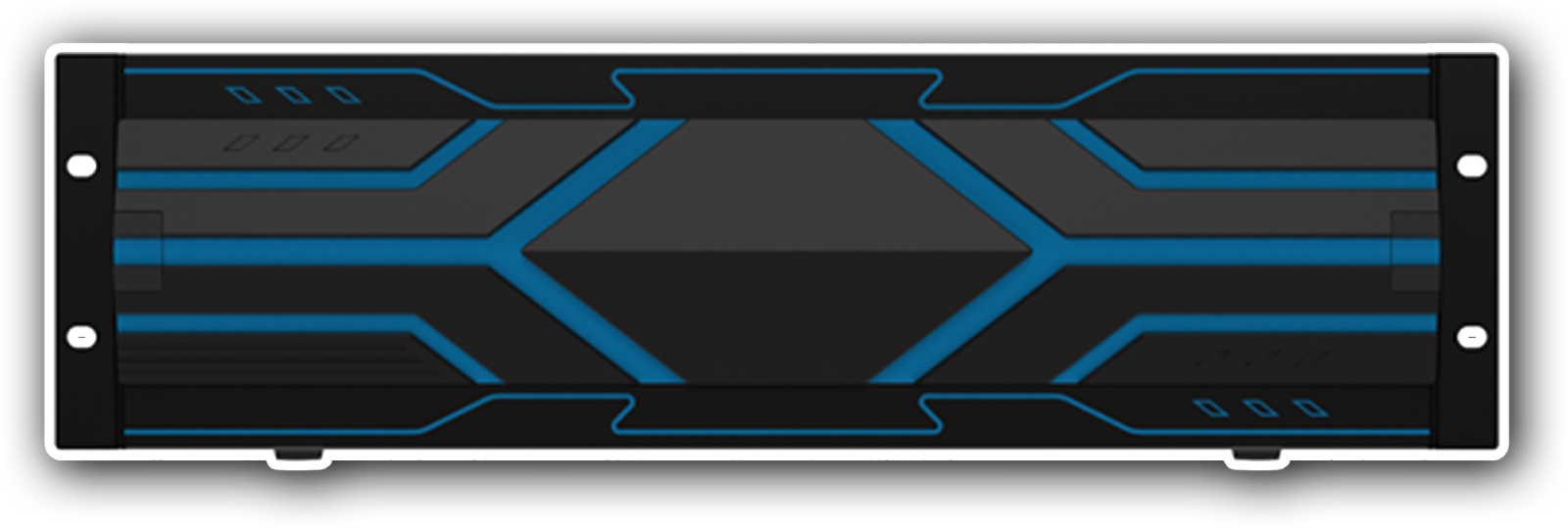

The DT4016D16 combines video processing and video control in a single device, featuring 20 Gigabit Ethernet ports, multiple high-resolution video inputs, flexible optical-fiber connectivity, advanced video processing, and support for displays up to 13 million pixels. With support for up to 4K×2K@60Hz video input and ultra-wide output configurations, it is designed for medium- and high-end rental, stage control systems, and fine-pitch LED displays.
Key Features:
DT4016D16: Delivering High-Definition Clarity and 24/7 Reliability for Professional Applications
From stage productions and rental displays to fine-pitch LED installations, the DT4016D16 provides powerful video processing, flexible signal management and reliable LED display control in a single professional solution. With support for multiple input formats, optical-fiber connectivity, advanced scaling, multi-layer processing and low-latency operation, it is built to handle demanding professional display environments.
DT4016D16 Details
| Interface | Description |
|---|---|
| DP 1.2 | 1× DP 1.2 input; maximum input resolution 4096×2160@60Hz |
| HDMI 2.0 | 2× HDMI 2.0 inputs; maximum input resolution 4096×2160@60Hz |
| HDMI 1.3 | 4× HDMI 1.3 inputs; maximum input resolution 1920×1080@60Hz |
| 12G-SDI | 1× 12G-SDI input with loop output; supports up to 4096×2160@60Hz |
| Ethernet | 20× Gigabit Ethernet ports; maximum loading capacity 13 million pixels |
| Optical Fiber | 4× 10G optical fiber ports; OPT 1/2 are self-adaptive for input/output |
| Monitor Output | 1× HDMI 1.3 monitoring output, 1920×1080@60Hz fixed |
| 3D | 1× 3D connector for connection to a third-party 3D emitter |
| Audio | 1× 3.5 mm audio input and 1× 3.5 mm audio output |
| Control Ethernet | 2× Ethernet ports for web control and device cascading |
| USB | 1× USB 2.0 for firmware updates, logs and EDID import/export |
| RS232 | 1× 3-pin RS232 connector |
| Genlock | 1× Genlock IN/LOOP for external synchronization |
| Light Sensor | 1× connector for ambient brightness monitoring and automatic screen brightness adjustment |
