[ Controllers & Softwares ]

AX-V08

12 Gigabit output ports

Wi-Fi antenna interface

USB2.0 / 3.0

3.5mm Audio Output

Built-in Storage

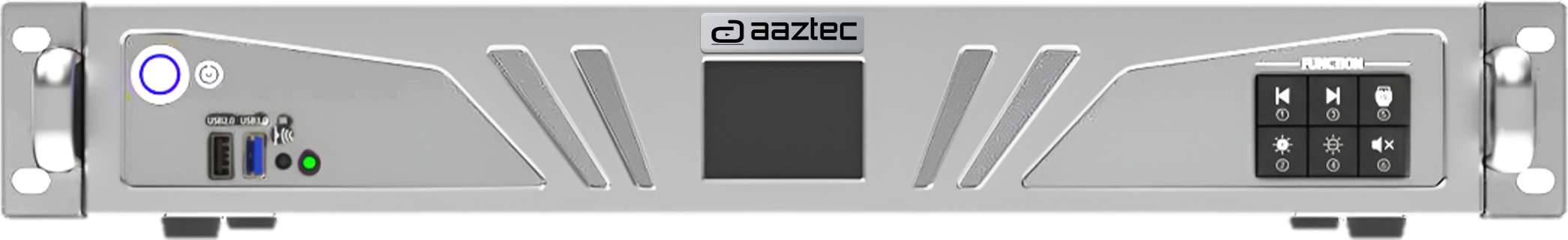

The AX-V08 is a flagship all-in-one LED video controller and high-capacity video processor engineered to deliver seamless video switching, advanced image scaling, and direct display sending capabilities. Designed specifically for rental staging productions, broadcast studios, high-end auditoriums, convention centers, and command control rooms, the AX-V08 unifies an advanced multi-input video switcher and an industrial sending card into a single chassis, eliminating equipment rack clutter and reducing system latency.

0 GB

Built-in Storage

0 K

Supports pixel upto

0 : 1

Contrast Ratio

[ AX-V08 ]

High Impact. Stunning Clarity.

Key Features:

The device integrates 12 Gigabit Ethernet output ports, no external sending card is required, and it supports the full range of Aaztec receiving cards;
Single network port 65W points, the whole machine load 760W points, the widest 3840, the highest 2160;
WIFI 2.4G+5G dual-band, wired Ethernet port, USB flash drive, 4G (optional) multiple communication methods;
Built-in 64GB (55G available to users), supports USB flash drive expansion; Supports simultaneous connection to monitor and large screen, and duplicate output, supports keyboard and mouse, USB remote control, and mobile APP control;
Supports modification of theme background via remote control; 3.5mm audio output, audio and video synchronous output;
Supports 1 HDMI1.3 capture input, maximum support 1920 x 1080@60Hz point-to-point display,
Support multiple windows and multiple materials to play on the screen at the same time;
Supports optional 3-way relay control, which can remotely control the external power switch;
Onboard brightness sensor interface, automatically adjusts screen brightness according to ambient brightness;
Supports Aaztec CMS cloud platform, cluster hierarchical management and multi-role program publishing;
The simple APP allows you to fully control program editing and management, allowing you to enjoy the big screen at your fingertips.

Advanced AX-V08: Delivering High-Definition Clarity and 24/7 Reliability for Professional Applications

[ AX-V08 ]

Ready to Transform Your Space?

Let’s discuss how the AX-V08 can elevate your environment. Our display experts are ready to provide a customized consultation, technical assessment, and a comprehensive quote tailored to your specific project requirements.

Technical Specifications

AX-V08 Details

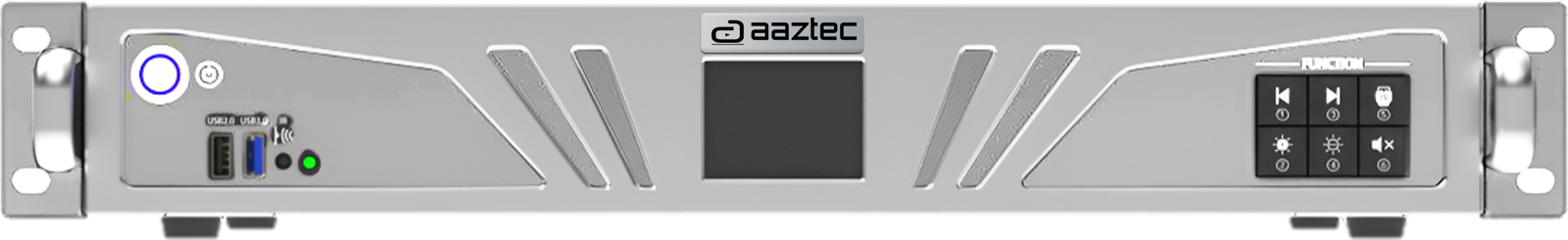

Interface	Description
Infrared	Infrared remote control receiver
button	Switch button
Brightness	Program switching, brightness + -, input signal switching, mute
USB	USB interface, 2.01 3.01
Color	Full-color LCD Information screen
Indicator light	Indicator light: normal operation green light is always on, standby red light is always on
