The M40 splicing server is a professional video processing and control device, featuring a pure hardware FPGA design. It adopts a modular design with a wide range of input and output interfaces, allowing for flexible configuration of input and output boards to meet the diverse needs of various projects. It is suitable for a wide range of applications, including TV stations, control rooms, command centers, exhibition halls, meeting rooms, stage performances, data centers, and multi-functional halls. M40 splicing server supports 8K ultra HD video access, multi-screen multi-layer management, input and output EDID management, input preview, 3D output, Genlock synchronous phase locking, to meet a variety of complex project requirements.
Key Features:
Advanced M40 14U: Delivering High-Definition Clarity and 24/7 Reliability for Professional Applications
Let’s discuss how the M40 14U can elevate your environment. Our display experts are ready to provide a customized consultation, technical assessment, and a comprehensive quote tailored to your specific project requirements.

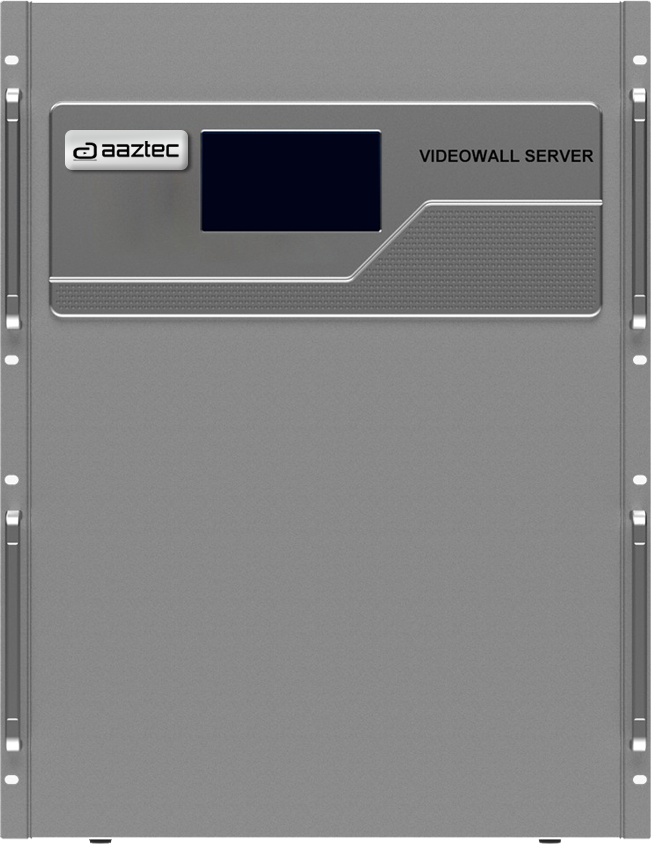

M40 14U Controller Details
| Specification | Details |
|---|---|
| Case specifications | 14U |
| Maximum number of input cards supported | Twenty |
| Maximum number of input channels supported | Route 160 |
| Maximum number of output cards supported | 24 pages |
| Maximum number of output network ports supported | Route 224 |
| Maximum number of layers | 128 |
| Input power supply | 110-240V~, 50/ 60Hz, 7.2A-3.5A |
| Overall power consumption | 600W |
| Work environment | 0~45°,0%RH~80%RH, no condensation |
| Storage environment | -20°~65°,0%RH~95%RH, no condensation |
| Outline dimension | 482.6mm×439.5mm ×628.5mm(L×W×H) |
| Net weight | 51 KG |
